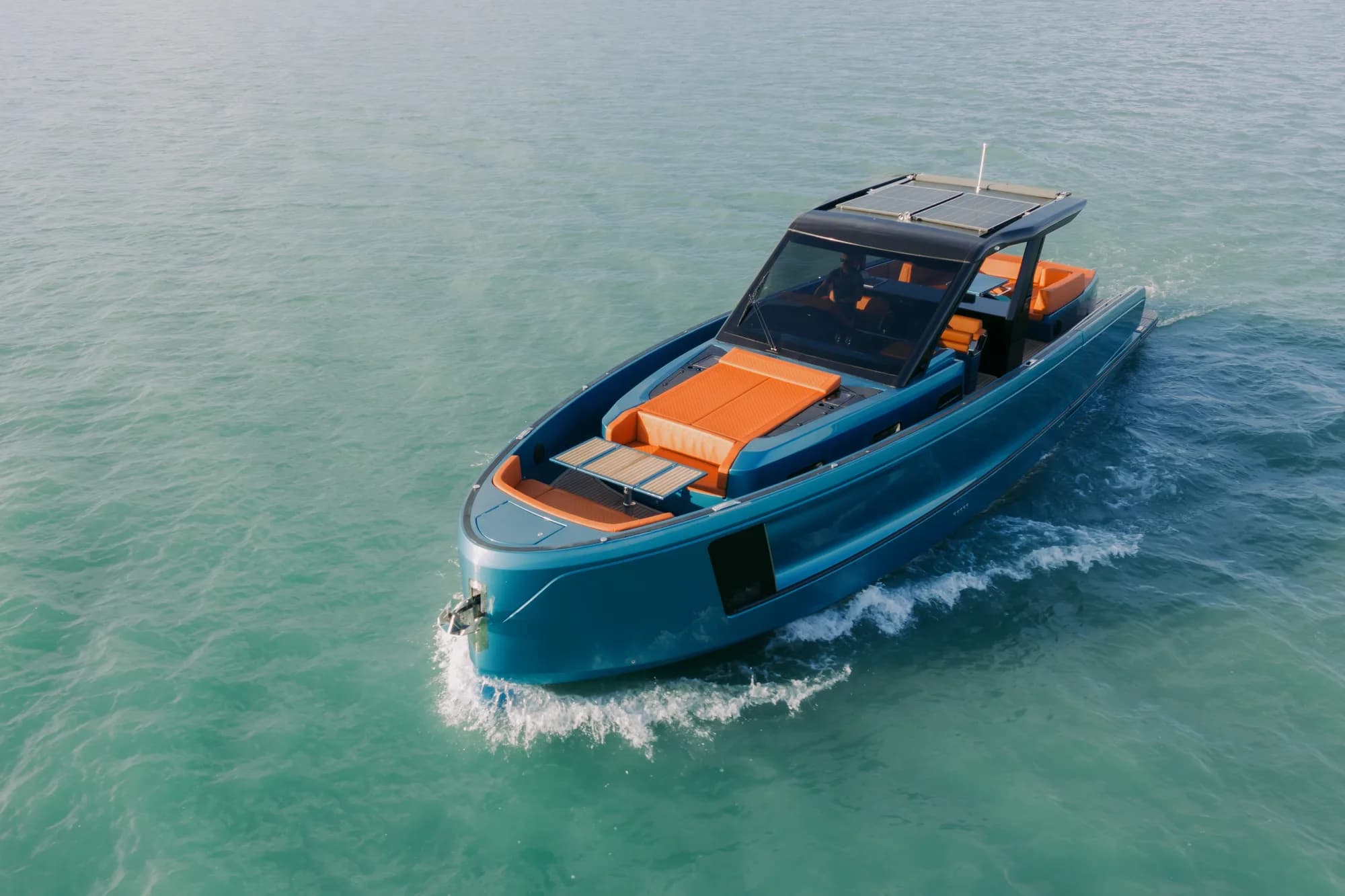

The blue-hulled Wia 520 Open with orange upholstery and a solar-panelled hardtop cruising on the turquoise water of Lake Balaton, seen from above.

Wia 520 Open

The flagship open-format luxury day yacht of the Wia fleet.

Length

16.1 m

Width

4.6 m

Range

up to 26 h

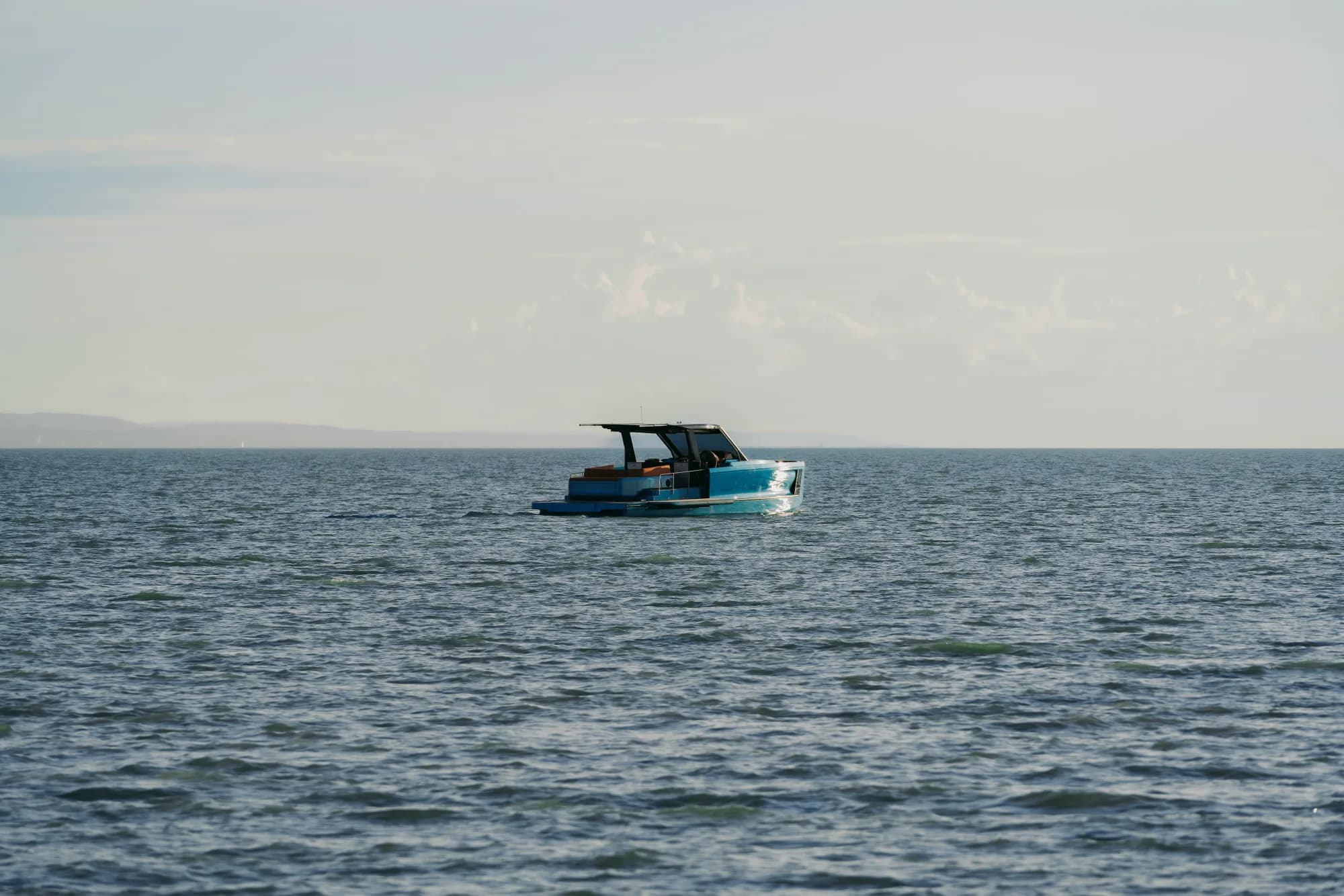

The Wia 520 Open in silhouette on the shimmering backlit water of Lake Balaton, hills on the horizon.

Extraordinary size, boundless experiences

Impressive dimensions, unmatched onboard comfort and a true sense of luxury — the flagship of the Wia fleet.

Open deck, endless space

The monumental scale and clean lines of the Wia 520 Open captivate from the first moment.

Every part of the deck is designed for social living: the expansive bow lounge and sunbed area, the central kitchen island and the generous aft living space all come together to create the perfect setting for unforgettable moments on the water.

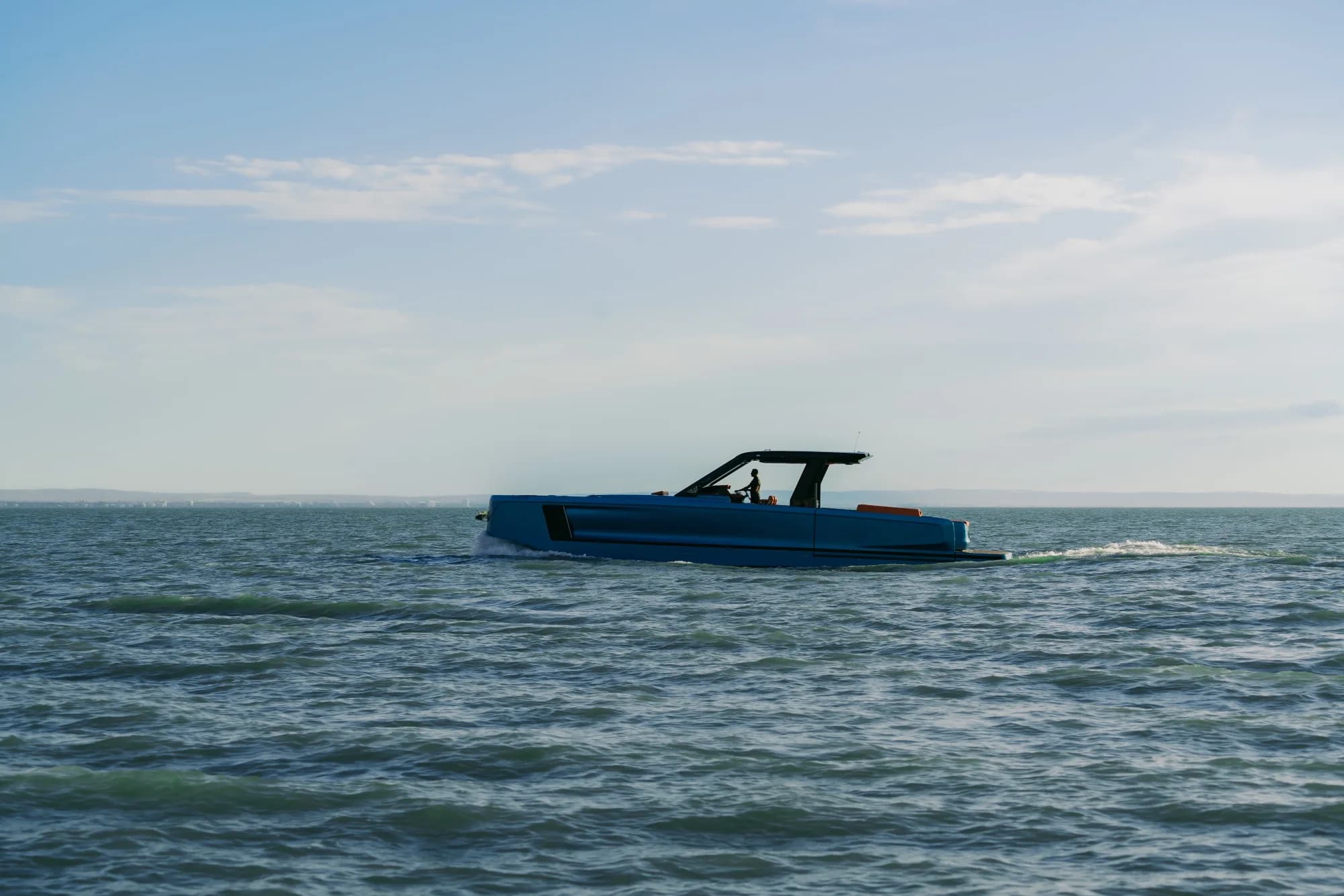

The blue-hulled Wia 520 Open under way on turquoise water, its orange cockpit and solar hardtop catching the light.

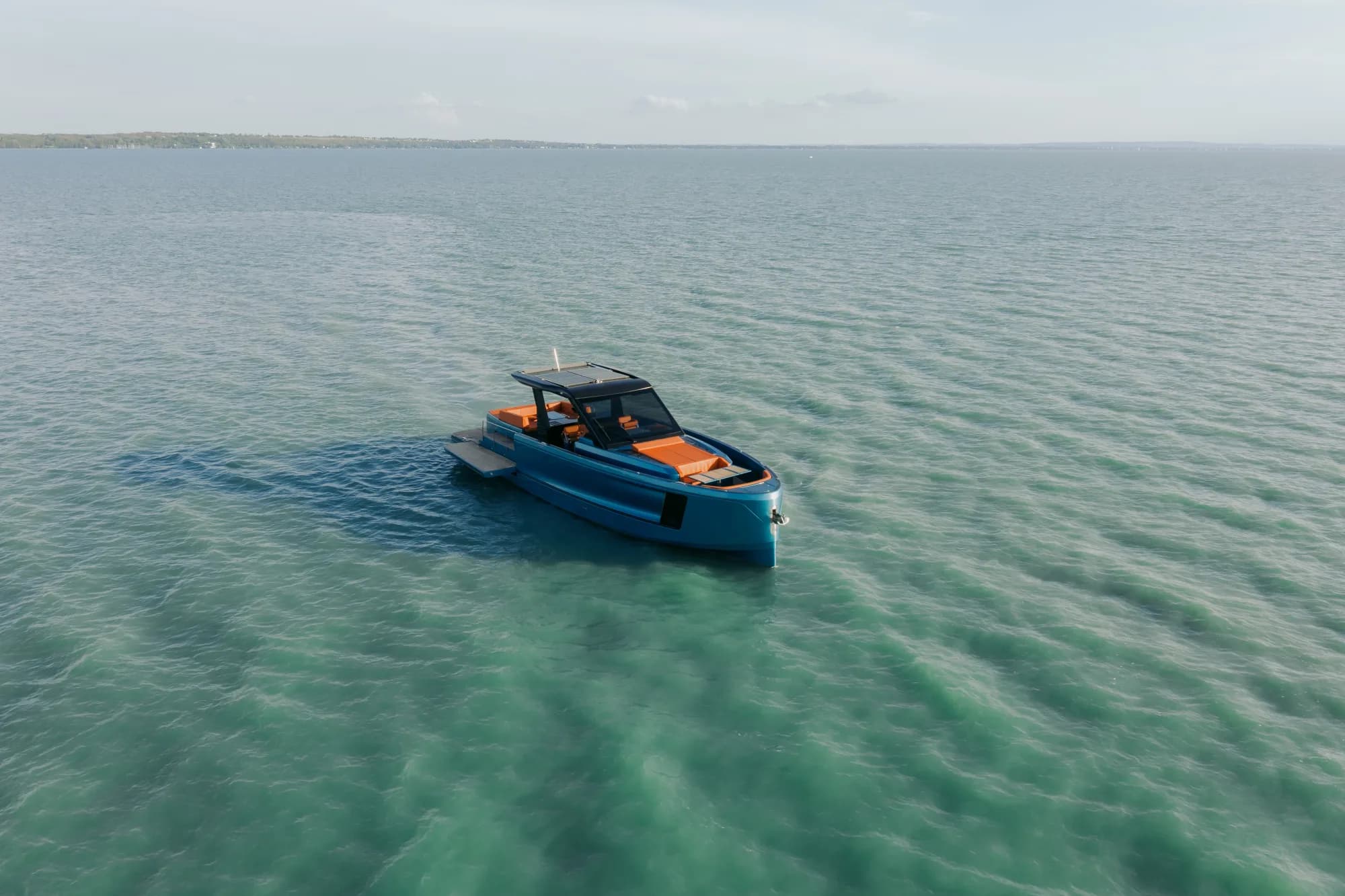

The Wia 520 Open cruising on Lake Balaton, its blue hull and open cockpit with orange sunpads seen from the water.

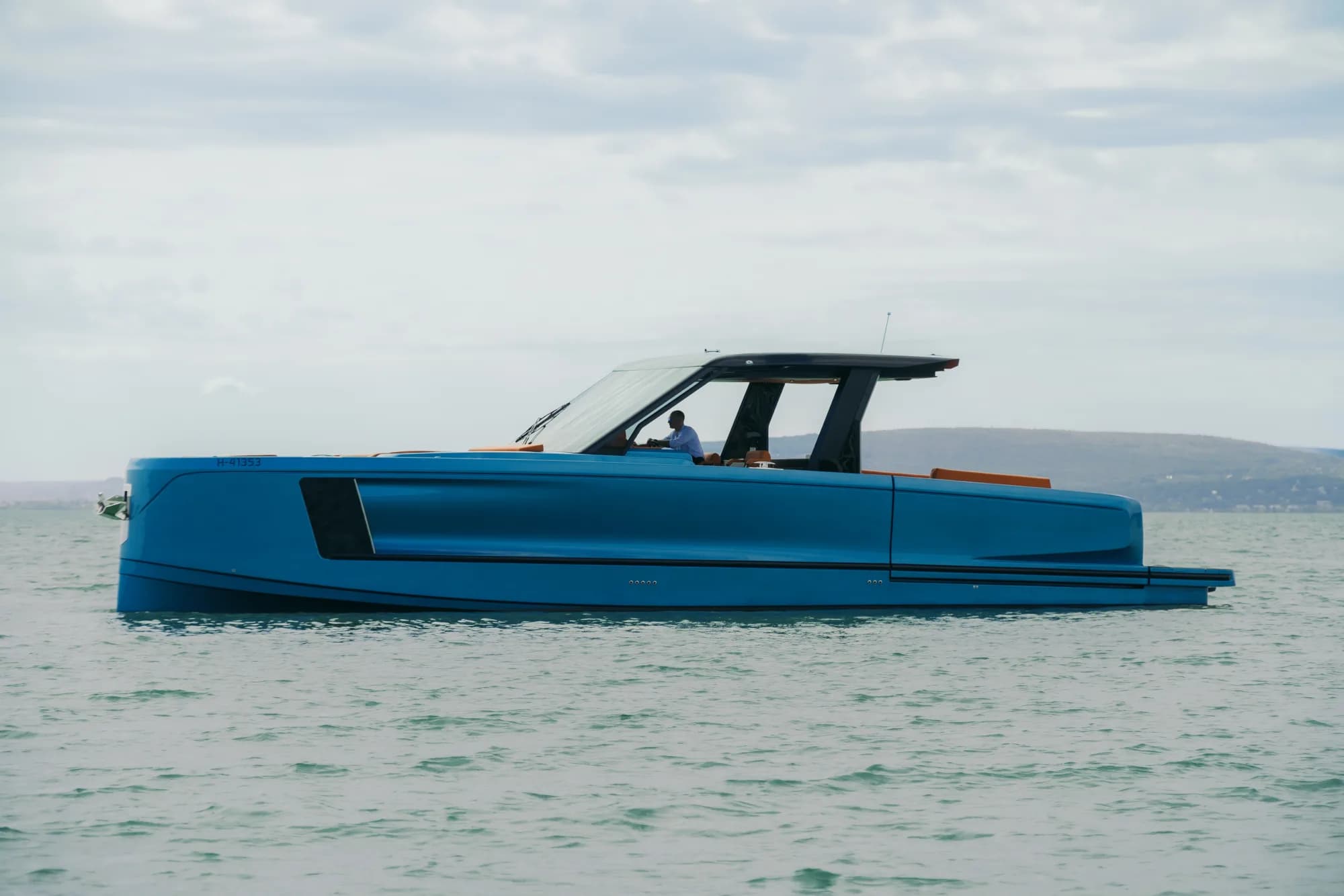

The blue-hulled Wia 520 Open at speed, a clean wake trailing behind its teak-trimmed transom.

Dimensions

Sideview

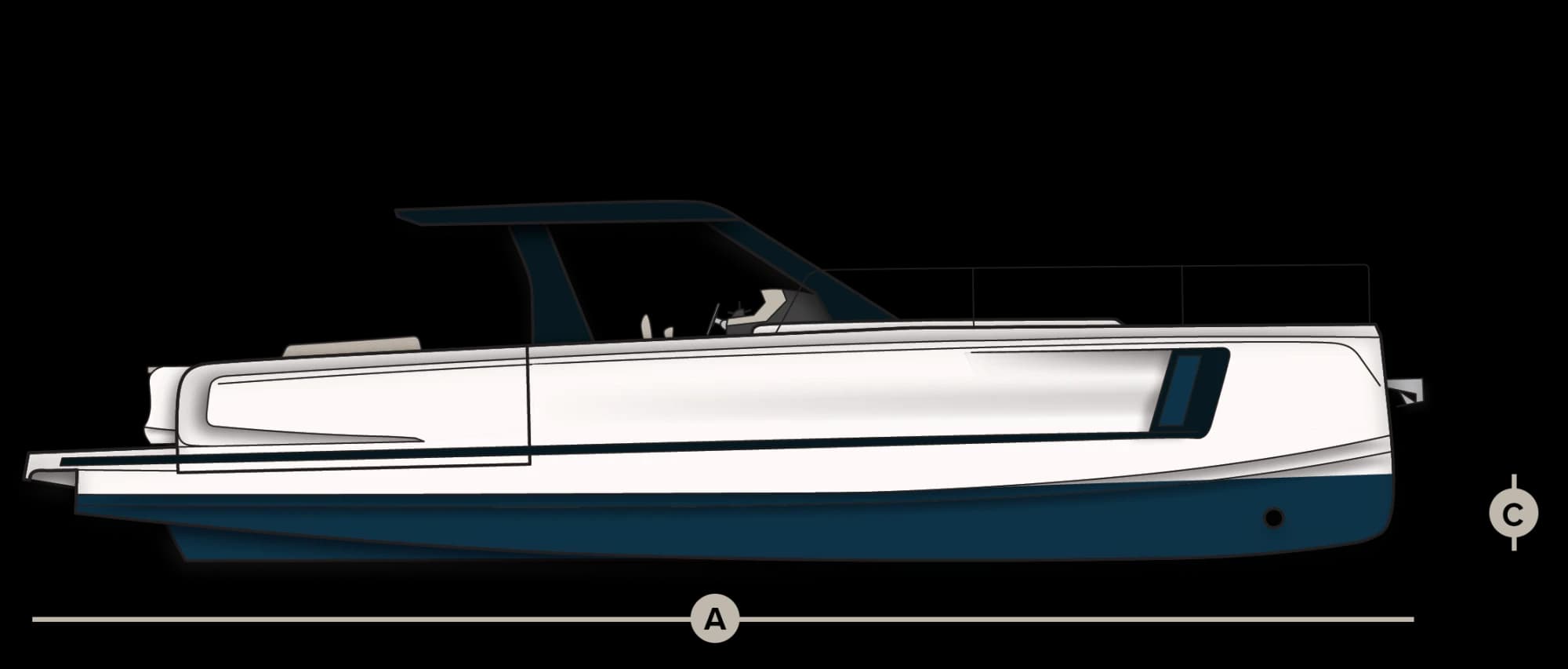

Side-view technical drawing of the Wia 520 Open, with the overall length (A) and the draught (C) marked.

Deck level

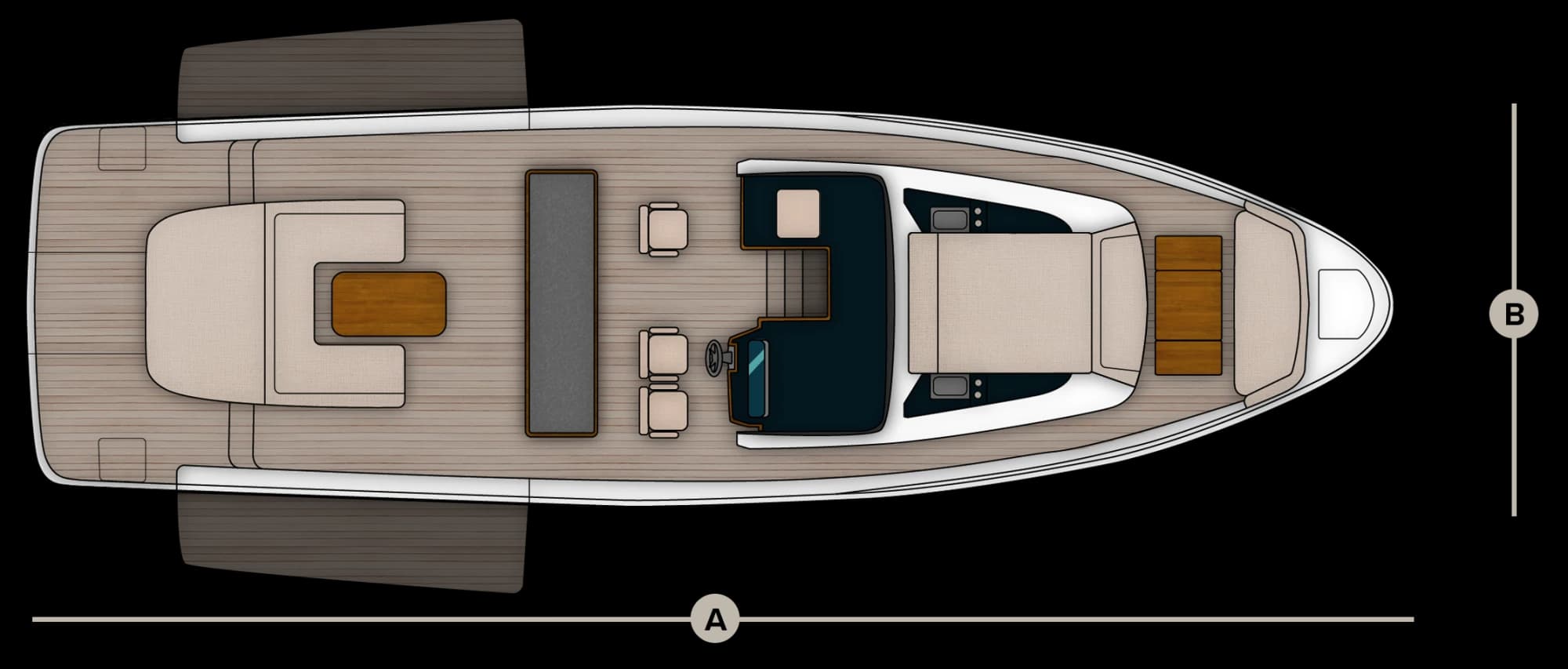

Deck-level plan of the Wia 520 Open showing the cockpit, seating and sunpads, with the length (A) and the beam (B) marked.

Cabin level

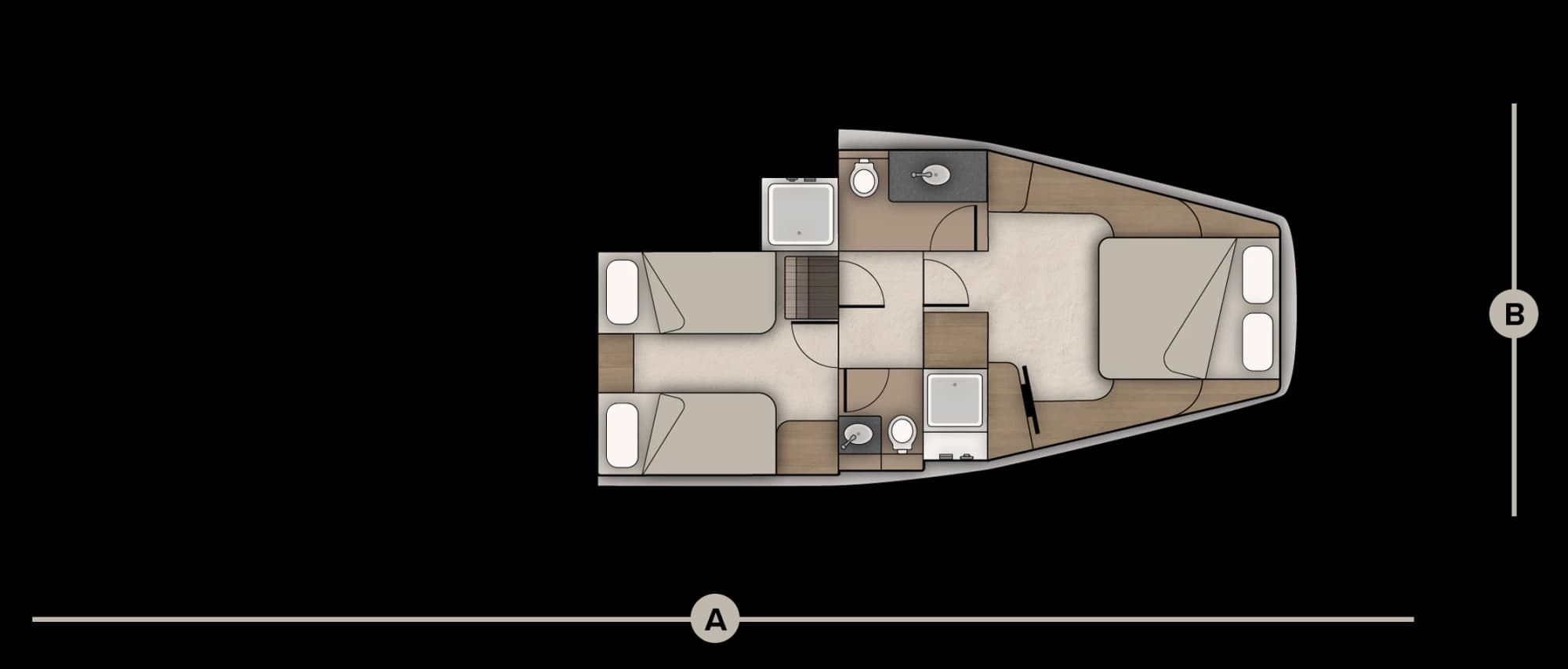

Cabin-level plan of the Wia 520 Open showing the berths, the heads and the galley, with the length (A) and the beam (B) marked.
A

Length

16.1 m

B

Width

4.6 m

C

Draught

0.7 m

Seats

12

Beds

6

Effortless comfort, thoughtfully integrated

The Wia 520 Open is designed around the idea that life on the water should feel natural, open and uncomplicated. Every exterior element has been carefully integrated to create a cleaner experience on board — visually and functionally. The electrically operated shading system adapts within seconds, offering protection from the midday sun or creating a more intimate atmosphere for long evenings on the water. Beneath the open layout, hidden storage compartments preserve the yacht's calm and uncluttered character while keeping essential equipment always within reach. A fully walkaround deck layout allows seamless movement throughout the yacht, connecting generous sunbeds, social seating areas and the exterior kitchen counter into one continuous outdoor living space.

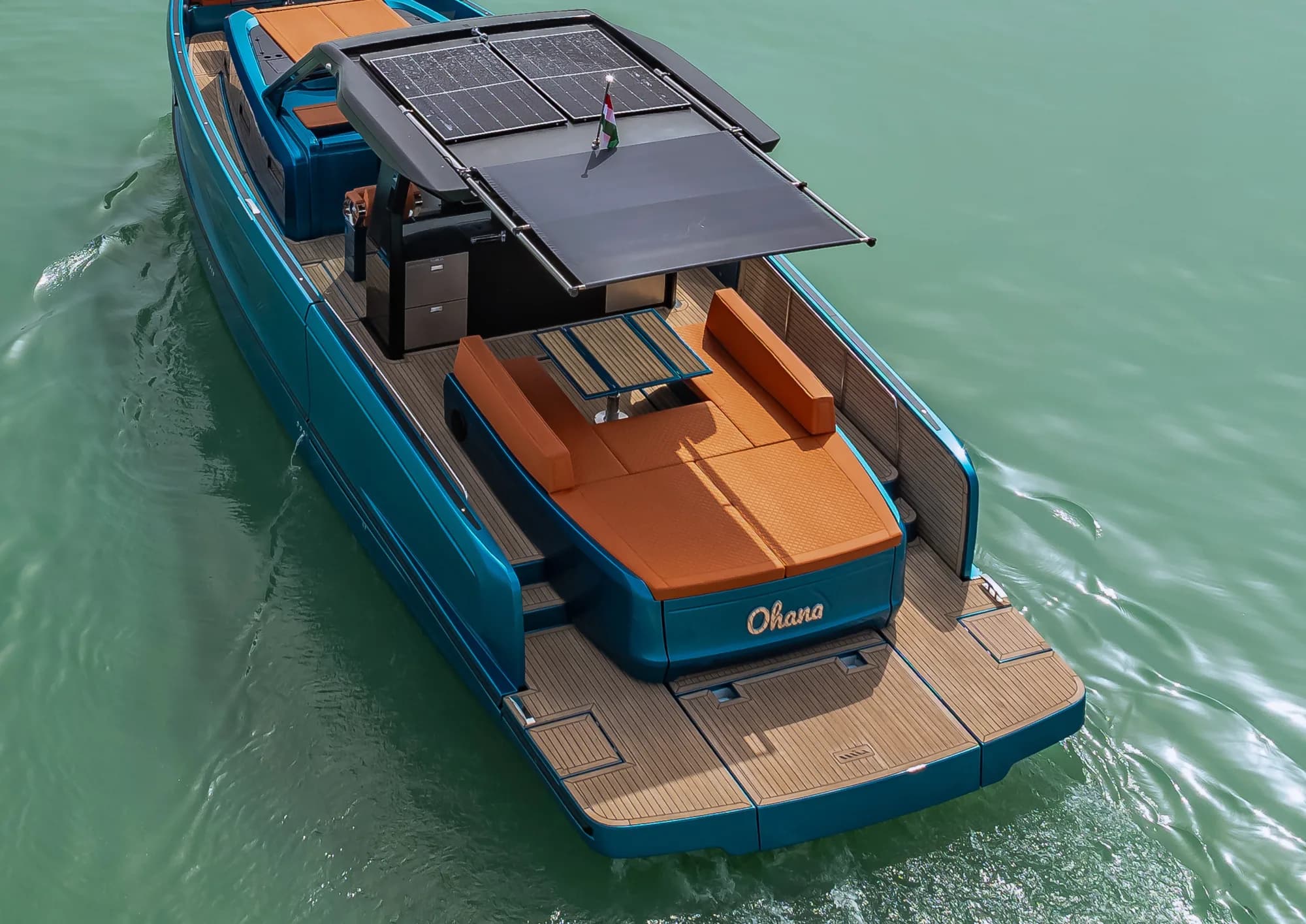

The aft deck of the Wia 520 Open under its motorised sunshade, orange sunpads and teak decking in the shade.
The open cockpit of the Wia 520 Open with orange leather seating and a teak table, the shade system extended overhead.
The Wia 520 Open on the water with its sunshade out and orange cockpit seating, the blue hull gleaming.

A welcoming interior with yacht-level comfort

The interior can be configured in multiple layouts, offering comfortable sleeping arrangements for up to six guests. Premium materials, fully equipped galley options and thoughtfully designed cabins create an environment that feels both luxurious and homely, making the 520 Open perfect for extended journeys.

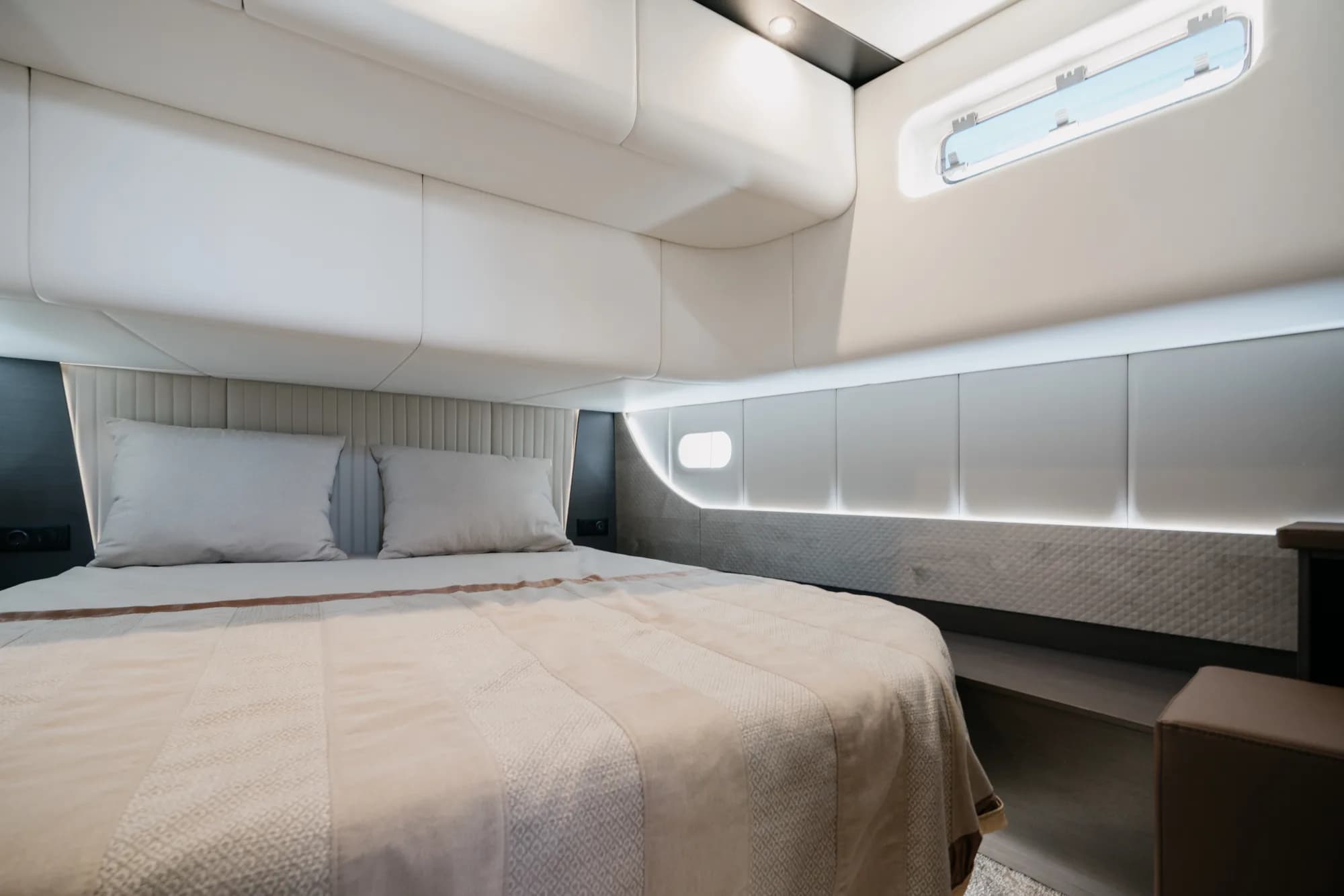

The owner's cabin of the Wia 520 Open: a double bed with cream bedding under a curved white ceiling, soft light from the hull windows.
An interior of the Wia 520 Open finished in cream and pale oak with soft lighting.

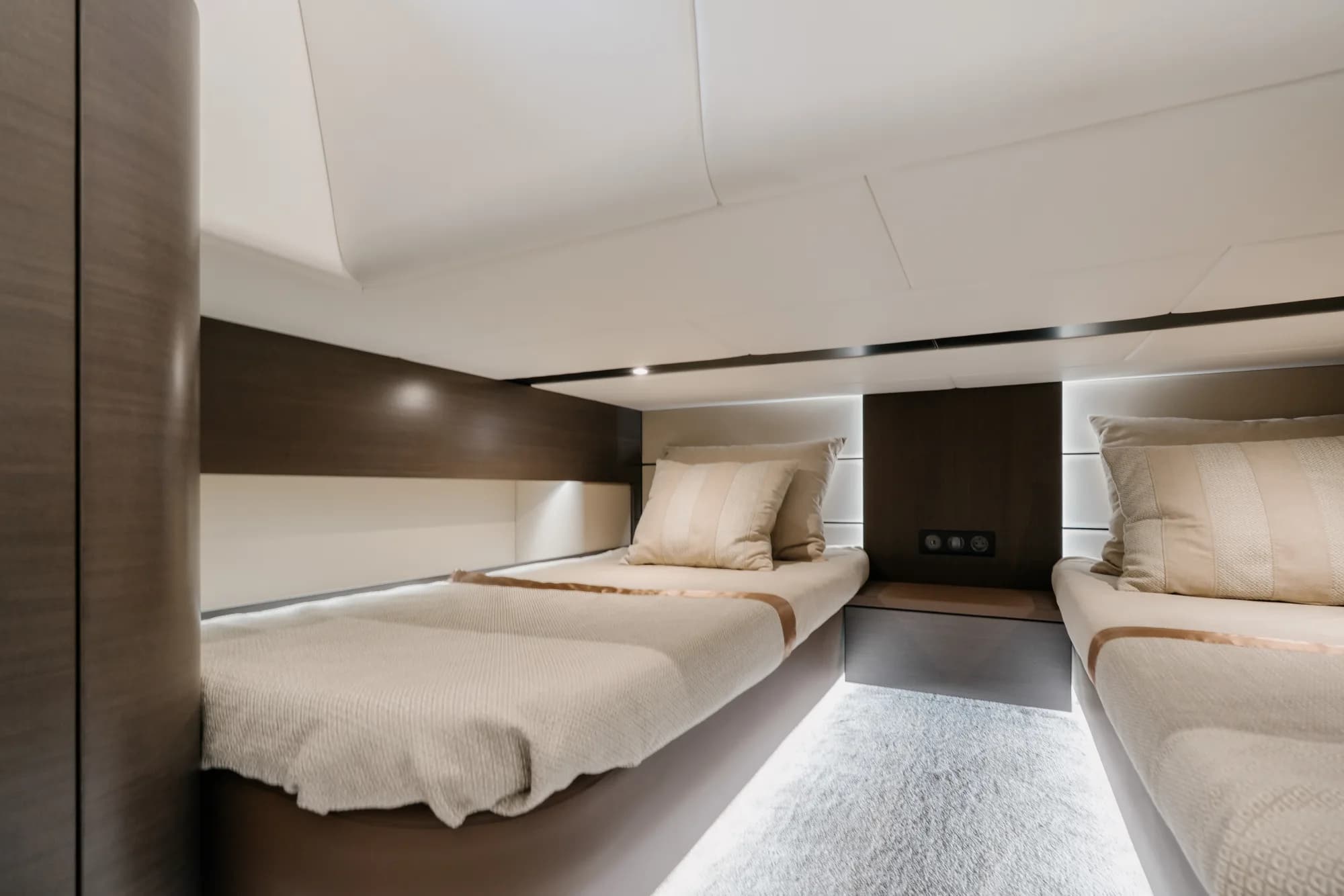

A guest cabin of the Wia 520 Open with cream bedding, pale oak panelling and natural light.
An interior of the Wia 520 Open finished in cream and pale oak, with soft natural light from the hull windows.

Sustainable performance

The advanced electric propulsion system of the Wia 520 Open delivers silent cruising with zero local emissions, capable of up to 16 hours on the water in max-range mode — proving that exceptional size and sustainability can finally go hand in hand.

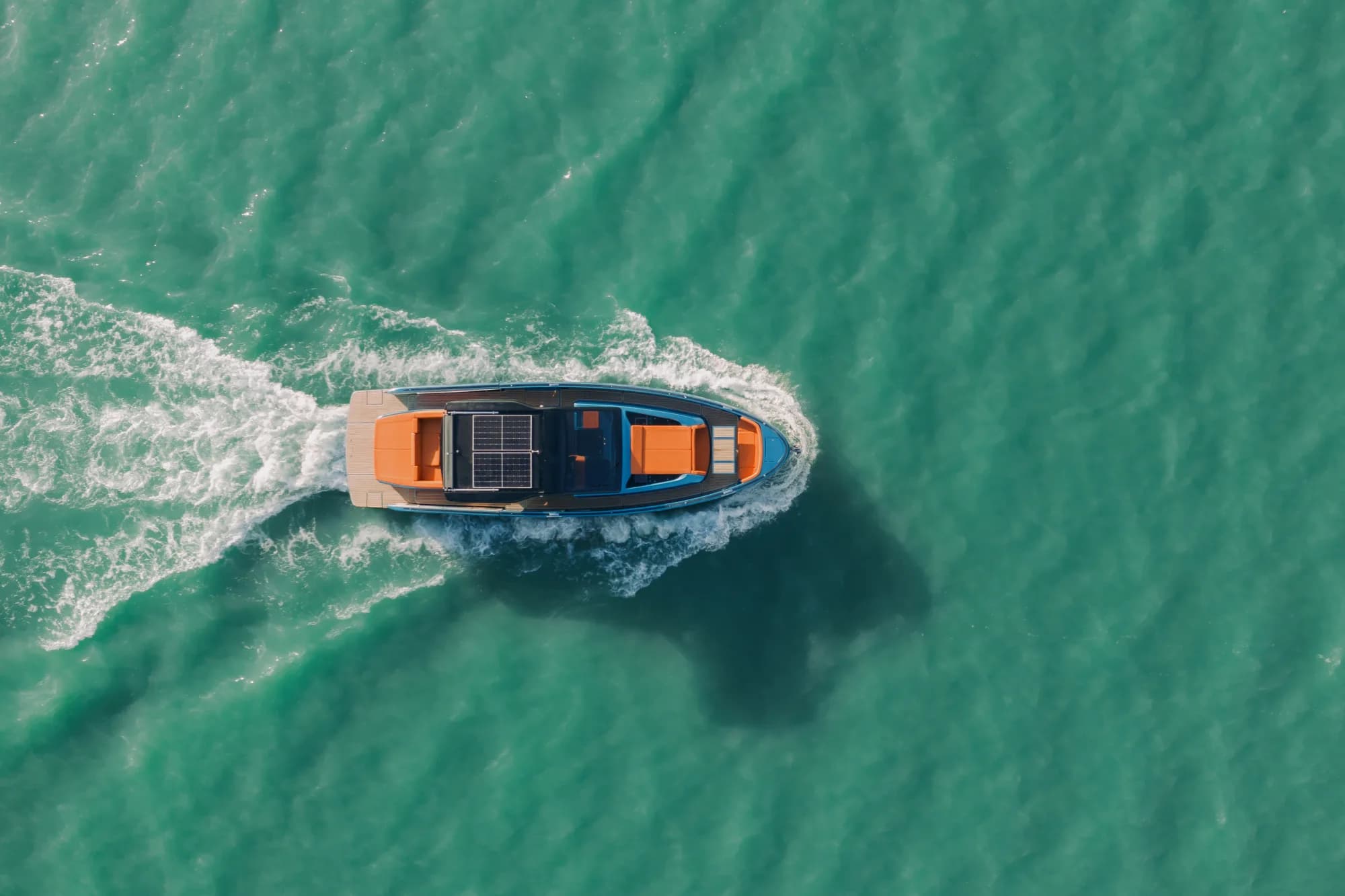

The blue-hulled Wia 520 Open cruising on open water, its orange cockpit and solar hardtop lit by the sun.
The Wia 520 Open under way, a clean wake trailing behind its blue hull on turquoise water.

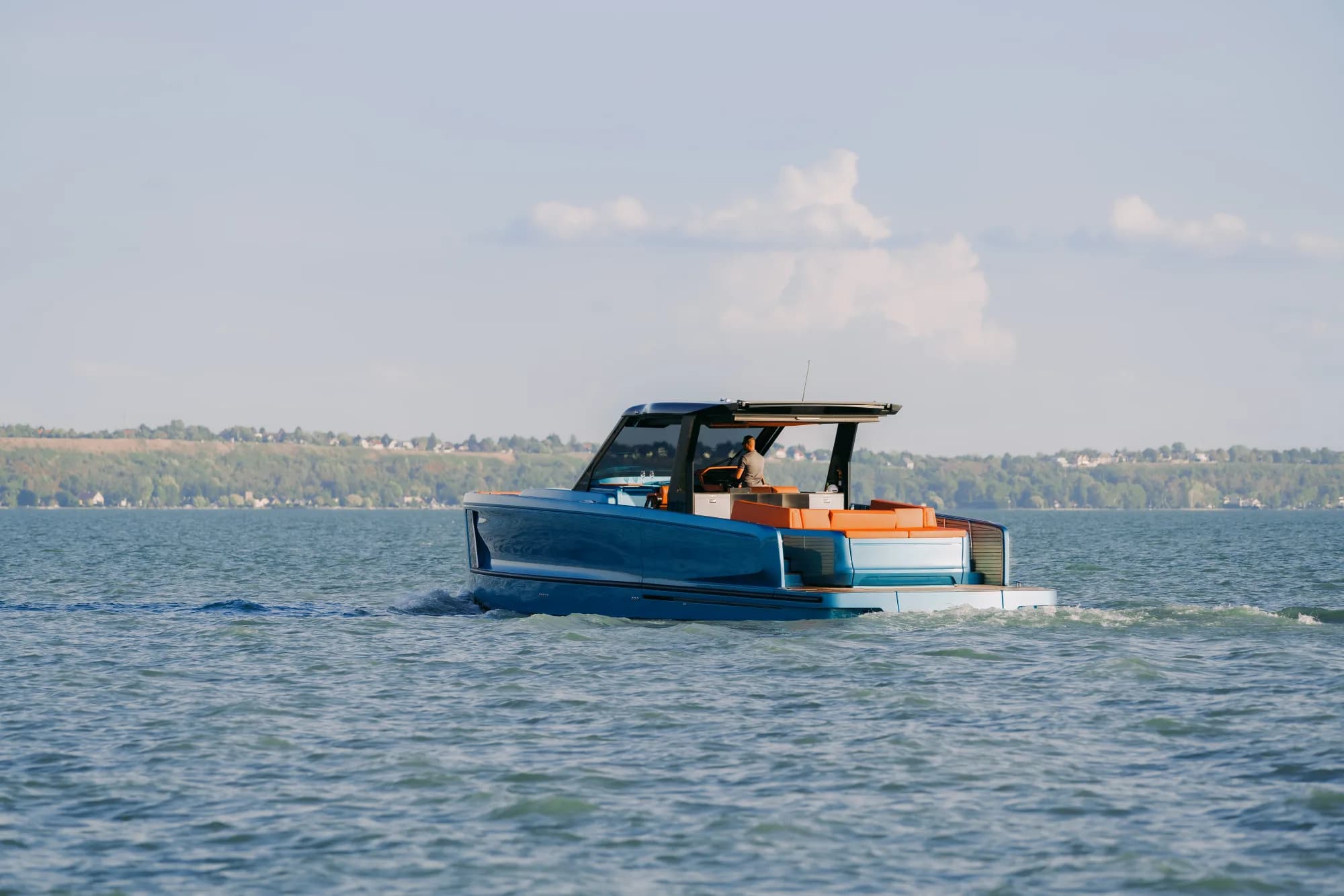

The Wia 520 Open on Lake Balaton seen from the water, its teak side decks and orange cockpit seating in view.

Built for the way you live on the water

The 520 Open was designed around a particular kind of owner: one who entertains often, cruises for the experience rather than the destination, and wants a flagship that feels as at home hosting a coastal lunch as it does anchored for a sunset with friends. It suits high-end leisure owners, luxury hospitality and charter operators, and coastal lifestyle buyers who want a strong, unmistakably flagship presence in the marina. At its best in coastal waters, premium marinas, Mediterranean cruising grounds and large inland lakes, the 520 Open turns every outing — a VIP hospitality afternoon, a premium charter, a long lunch on the water — into an elegant, silent experience built entirely around comfort and modern luxury.

Technical details

Material

Hand-laminated fibreglass composite hull, white gel-coat with internal osmosis protection

Battery

40 kWh lithium (LiFePO4), propulsion (base) + 5 kWh onboard systems + 1.3 kWh bow thruster

Optional: +40 kWh, +80 kWh or +120 kWh extra lithium packs (80, 120 or 160 kWh total propulsion)

Weight

16,000 kg

Passengers

12 passengers, sleeps 6 (2–3 cabins)

Length

16.1 m

Width

4.5 m

Speed

13 km/h cruising, 18.5 km/h top speed

Motor

2× 20 kW electric motors, direct drive (base)

Optional: 2× 50 kW (min. 80 kWh lithium required), ePropulsion 2× 40 kW performance package (with 160 kWh battery and charger), or Evoy 2× 225 kW performance package (with 276 kWh battery and charger)

Range

Up to 86 NM (160 km) in max-range mode

Up to 42 NM (78 km) at cruising speed

Draft

0.7 m

Charging

Onboard AC charging system, 15 m cable

Interface

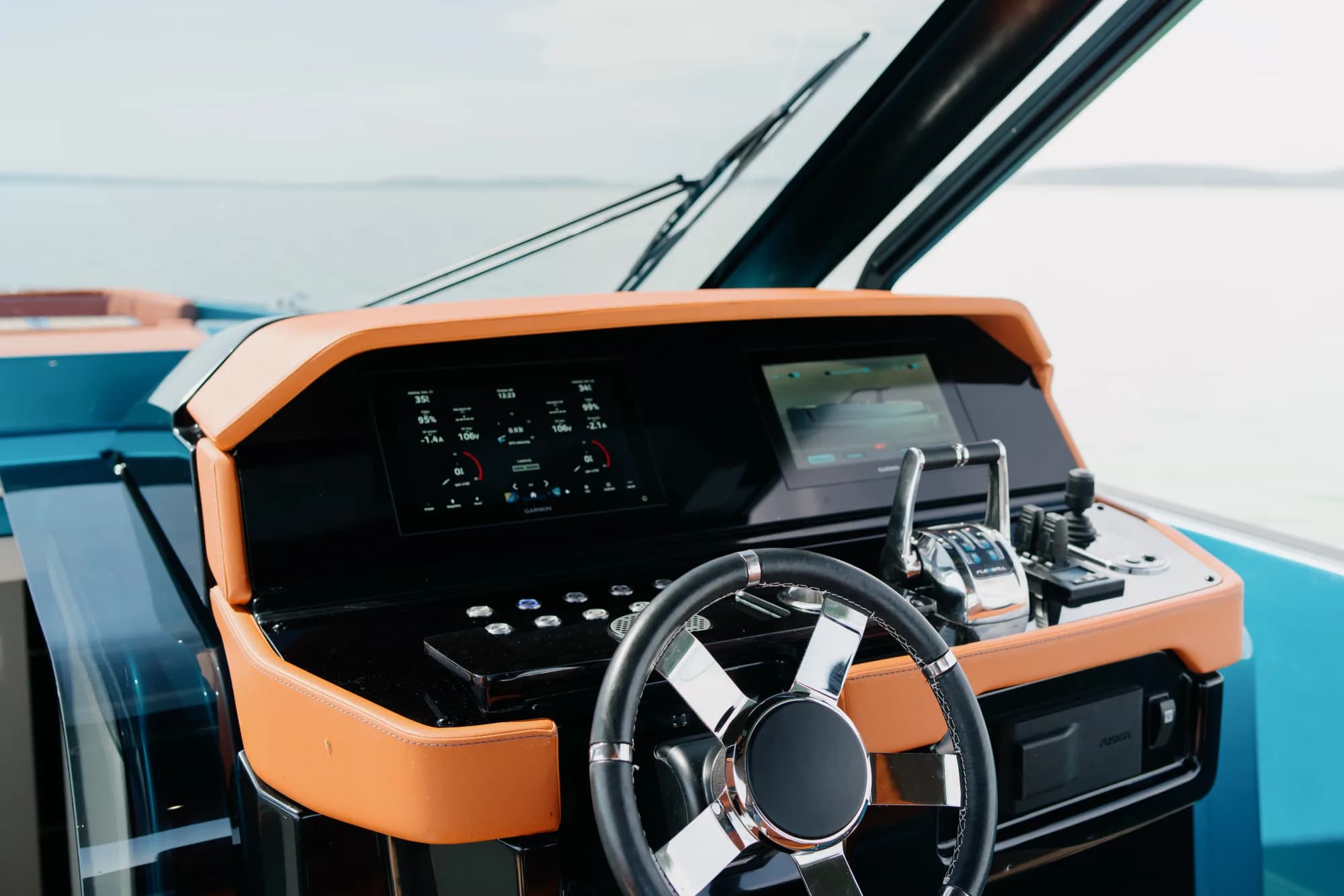

9-inch Garmin touchscreen GPS with depth sounder, speed and chartplotter (dual 12-inch available)

Hull shape

Semi-displacement hull, hand-laminated and optimised specifically for electric propulsion
